MEP Design
Sports & Recreation Facility – Café and Bar MEP Package
Florida, USA
Project Overview
AR Design LLC provided complete Mechanical, Electrical and Plumbing (MEP) engineering documentation for a sports and recreation facility including a café, bar area, commercial kitchen support spaces, restrooms, and covered terrace.
The project involved full system coordination across indoor and outdoor zones, including power distribution, lighting design, HVAC routing, sanitary systems, storm drainage integration, and roof equipment coordination. The drawing package was developed for permit submission in accordance with applicable Florida Building Code (FBC) and NEC requirements.
Project Scope
- ✓Interior and exterior lighting including covered terrace coordination
- ✓Power distribution design and panel scheduling
- ✓Total demand load calculations and service verification
- ✓Roof power plan and equipment coordination
- ✓HVAC layout with supply, return, and exhaust duct routing
- ✓Rooftop unit (RTU) integration and mechanical zoning
- ✓Commercial kitchen and bar equipment electrical integration
- ✓Sanitary waste and vent system design
- ✓Storm drainage routing and riser diagram development
- ✓Water supply line layout and riser diagrams
- ✓Permit-oriented construction drawing set preparation
Project Details
- Category
- MEP Engineering Design
- Sector
- Sports & Recreation / Food Service
- Location
- Florida, USA
- Code Compliance
- FBC, NEC
Drawing Set Gallery
Power & Lighting Plan

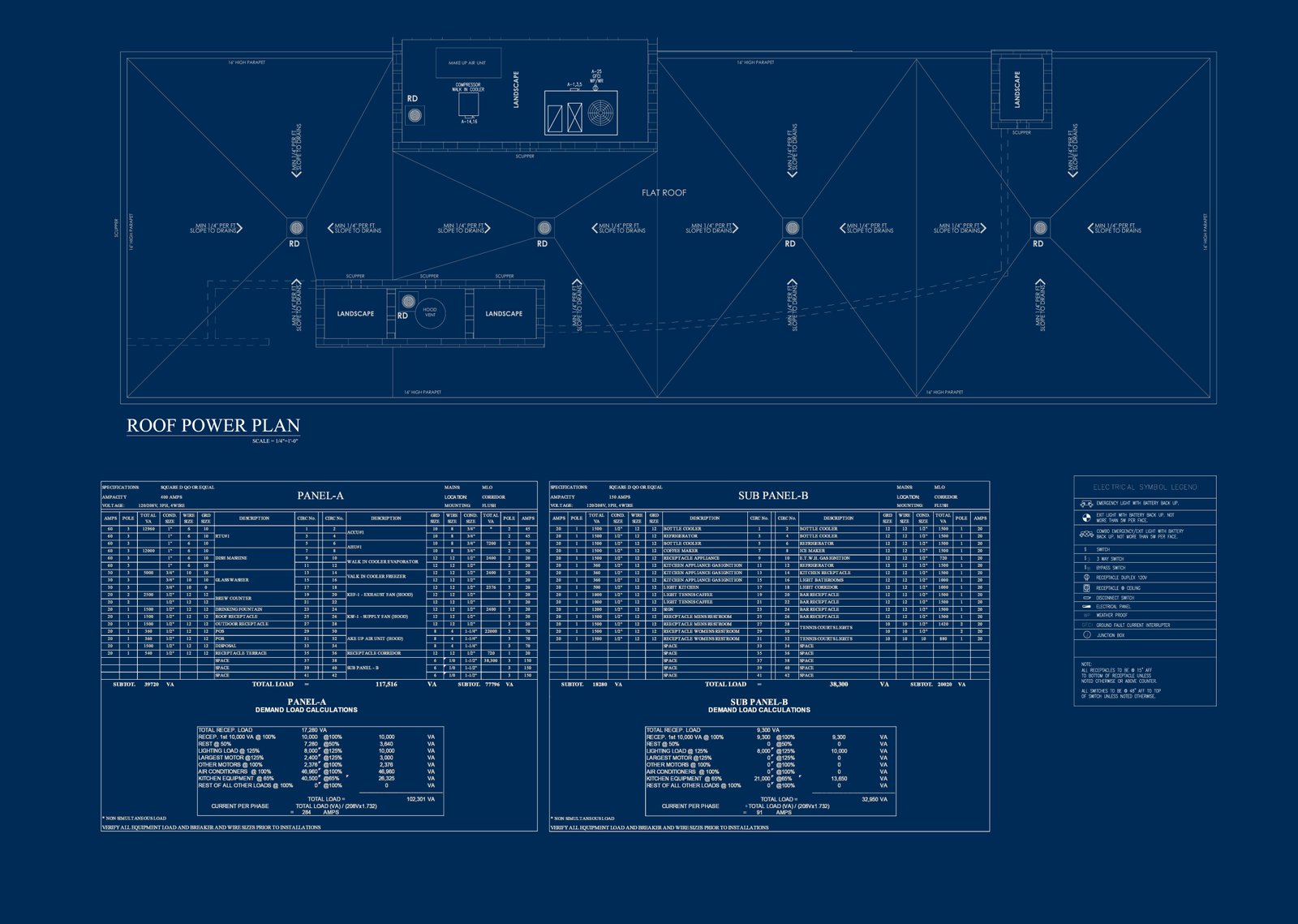

Roof Power Plan & Demand Load Calcs
Mechanical Plan
Plumbing Plan

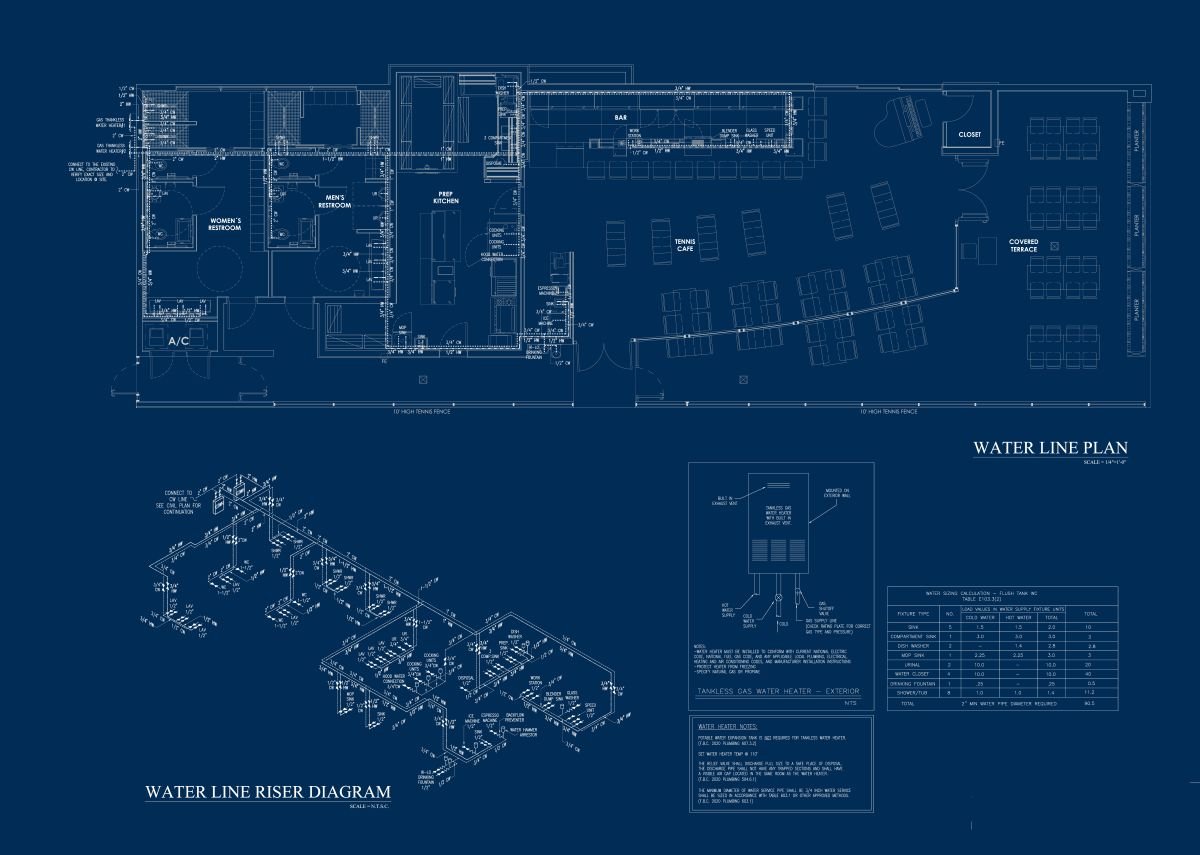

Water Line Plan
