MEP Design
Automotive Retail Showroom
Florida, USA
Project Overview
AR Design LLC provided full Mechanical, Electrical and Plumbing (MEP) documentation services for a mid-scale automotive retail showroom and associated service facility located in Florida.
The scope included coordinated lighting layout, power distribution design, panel scheduling and demand load calculations, rooftop equipment integration, and EV charging infrastructure planning.
All documentation was developed using a BIM-based workflow with focus on permit submission readiness, construction clarity, and contractor-oriented execution.
Project Highlights
- ✓Showroom lighting coordination and emergency system integration
- ✓Power floor plans and panel load calculations
- ✓Rooftop electrical coordination for mechanical equipment (RTUs)
- ✓Service building electrical layout and distribution
- ✓EV charging station design with voltage drop calculations
- ✓Permit-oriented drawing set preparation
Project Details
- Category
- MEP Engineering Design
- Sector
- Automotive Retail
- Location
- Florida, USA
- Scope
- Electrical & Power Systems, EV Charging
Drawing Set Gallery

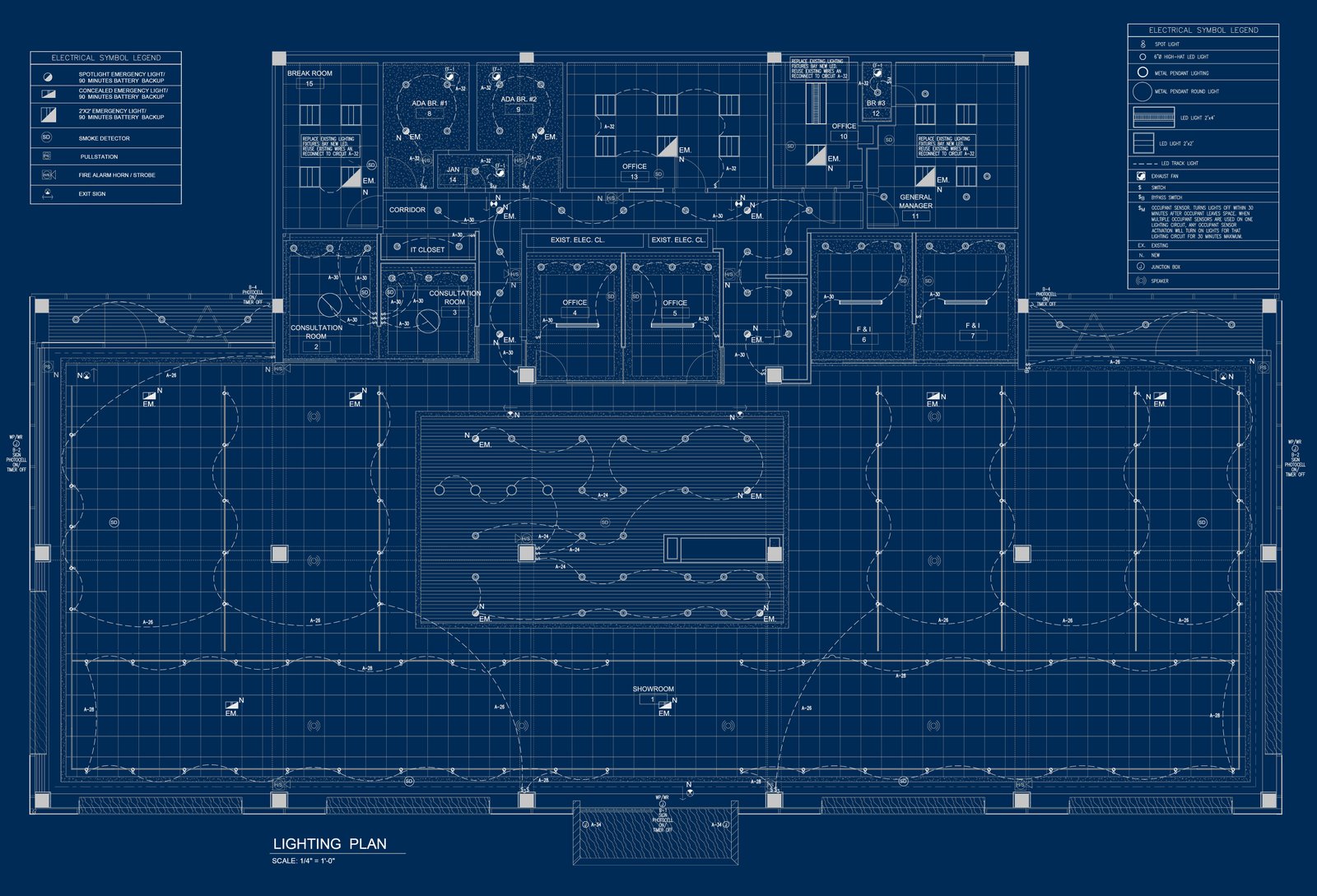

Lighting Plan

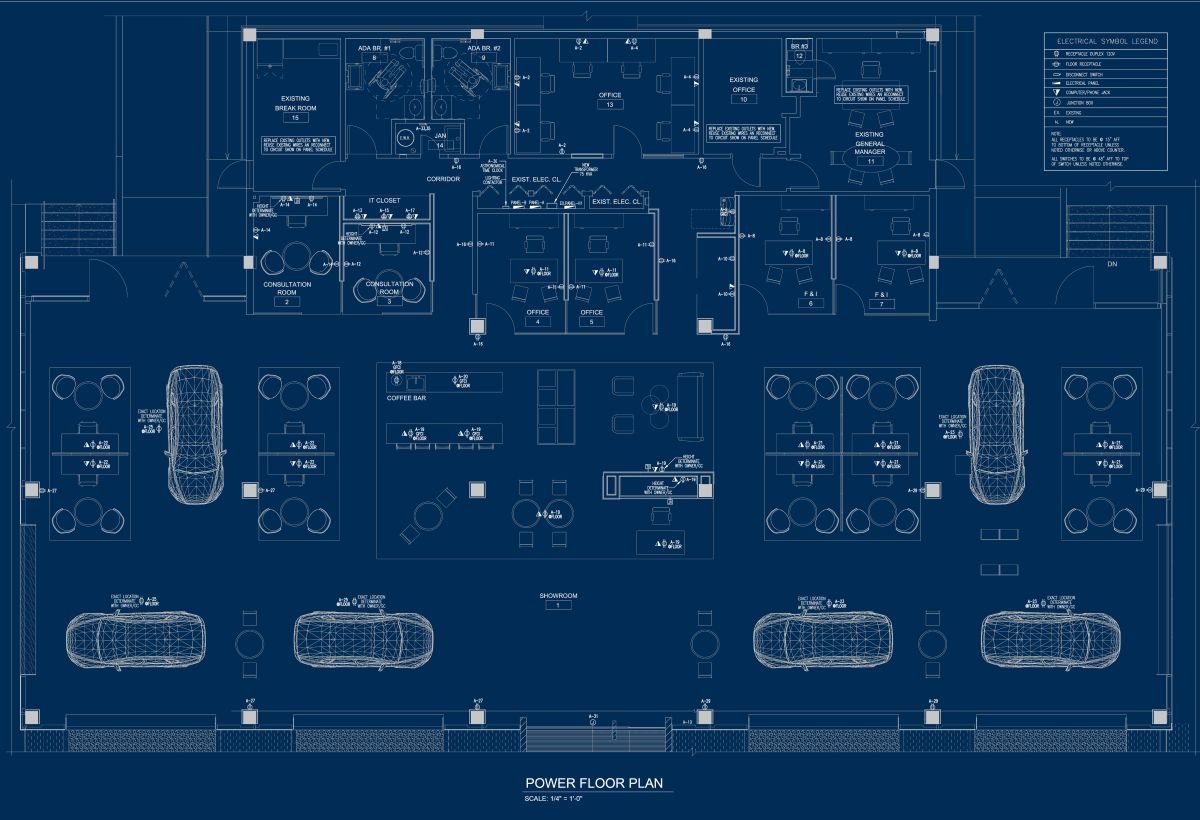

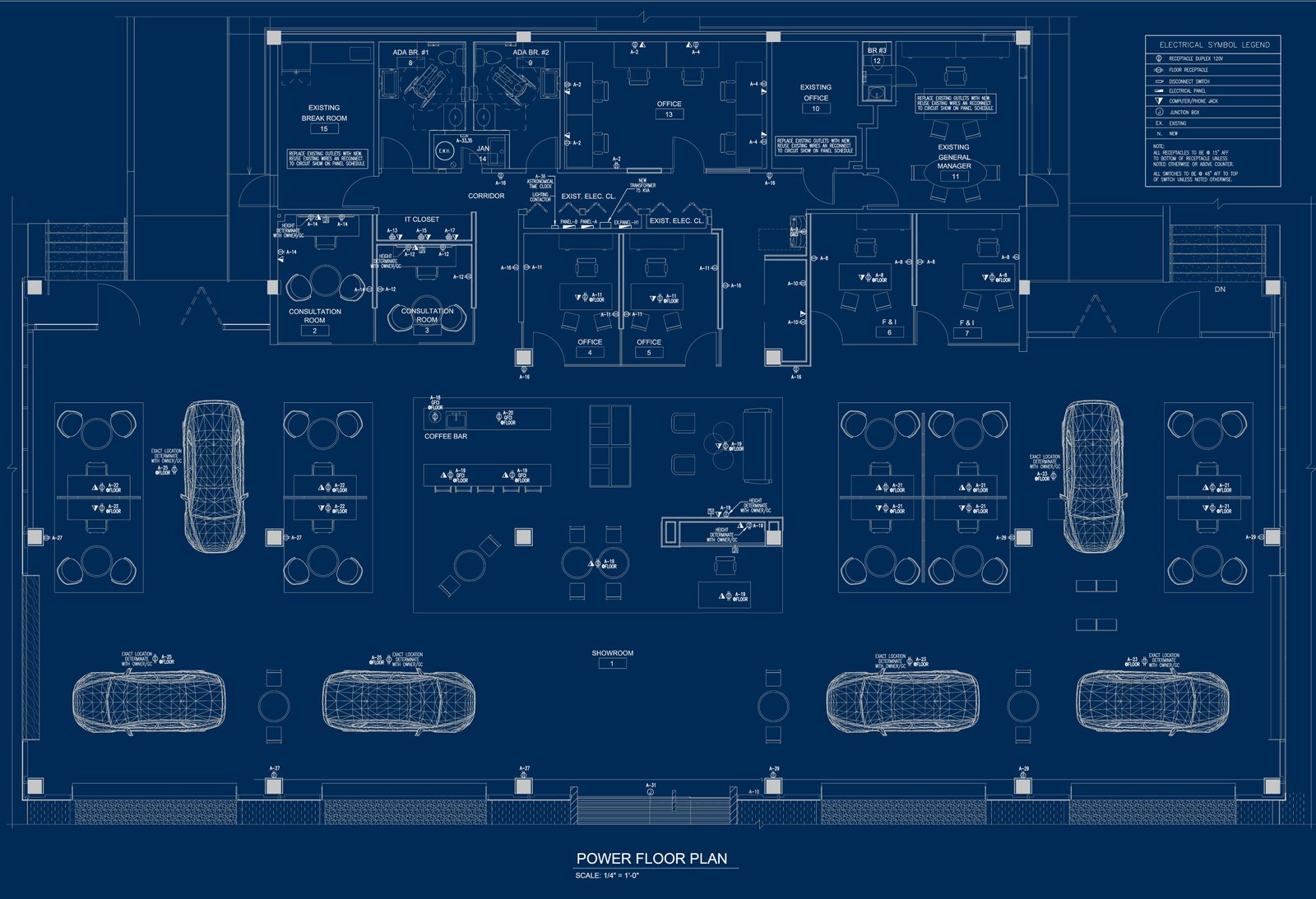

Power Plan

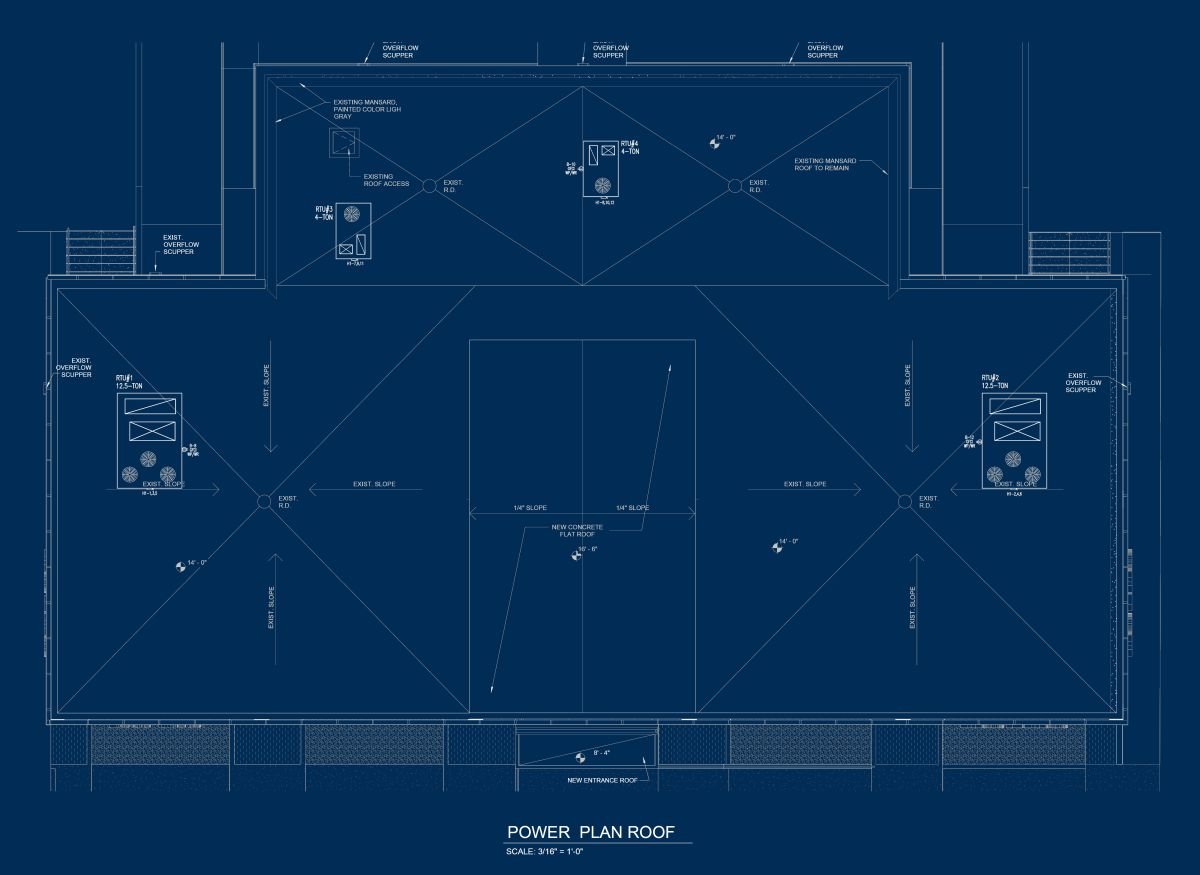

Roof Power Plan

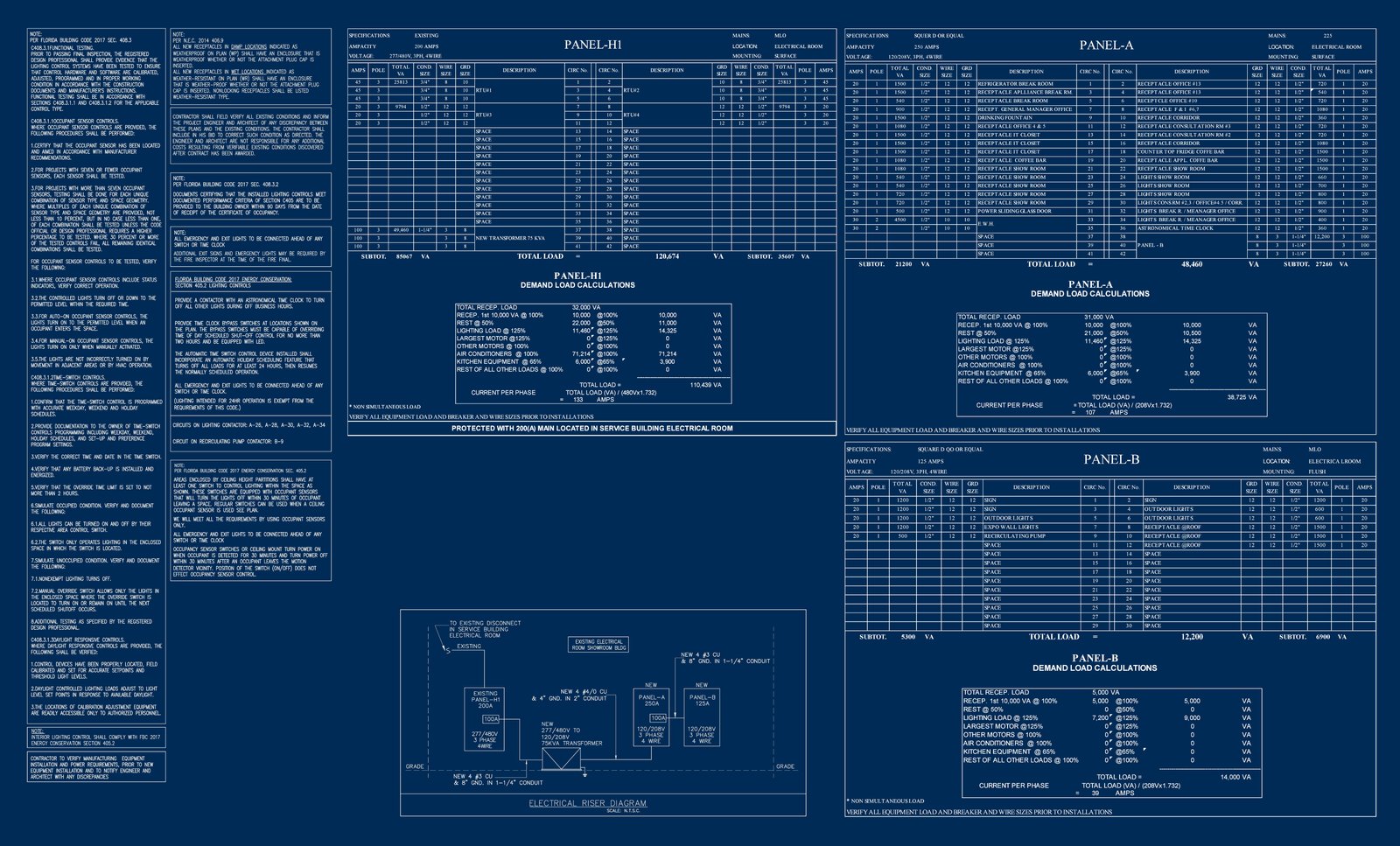

Electrical Panels

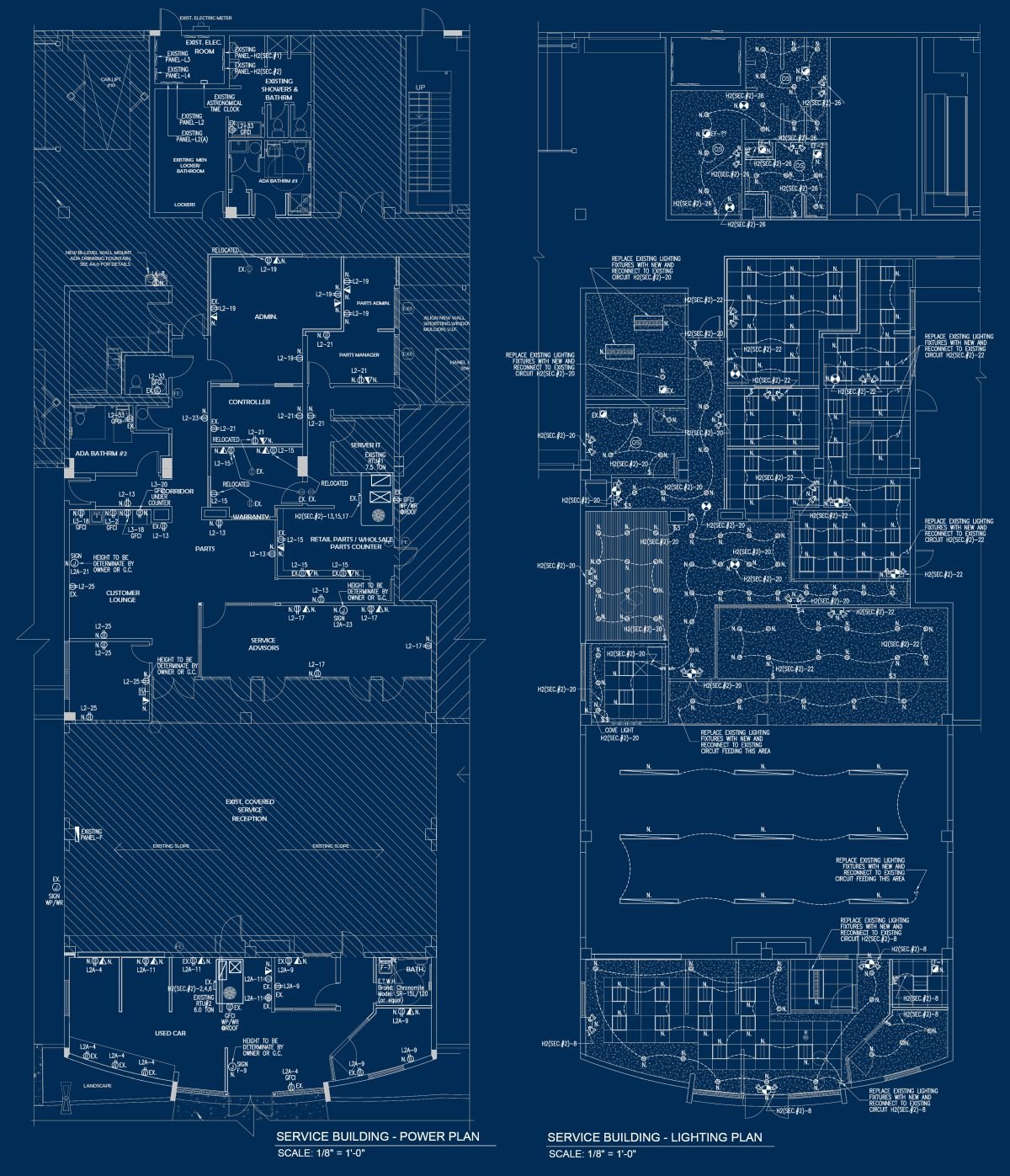

Service Building Power & Lighting

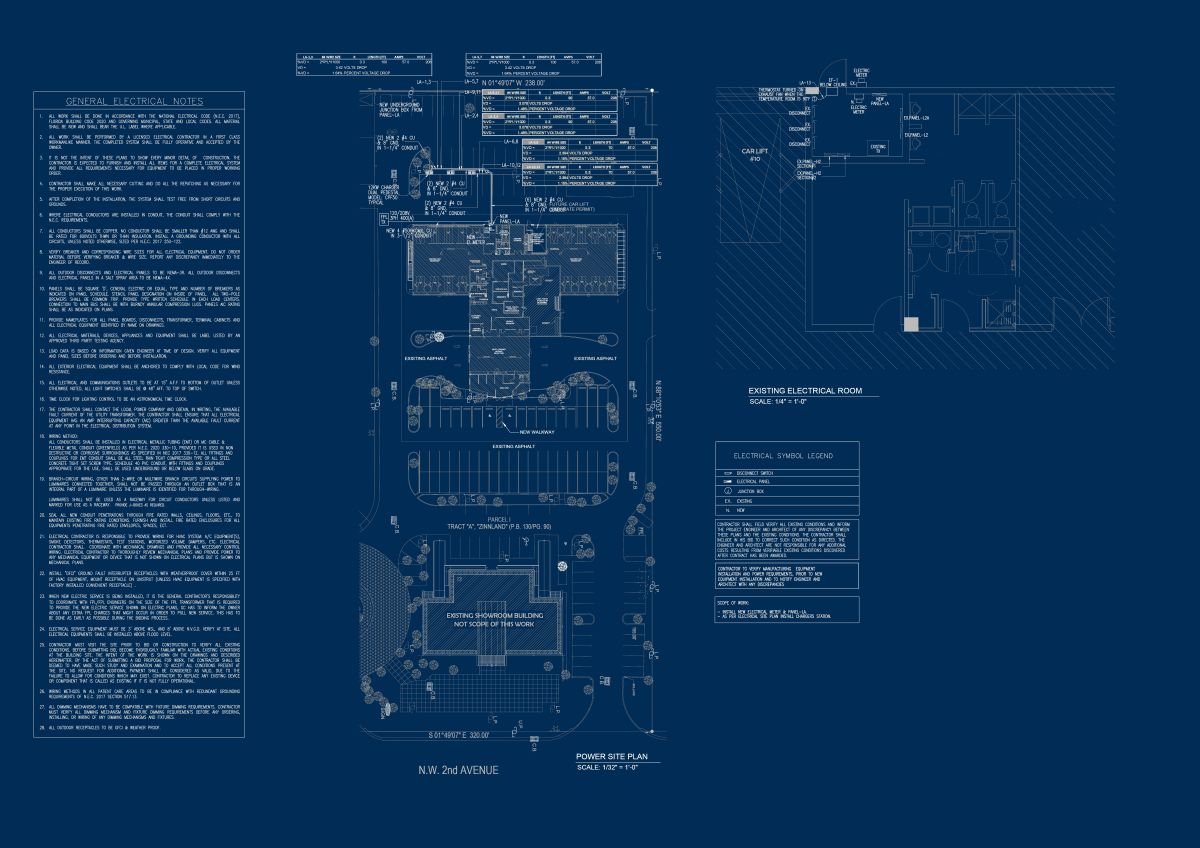

EV Charger Station Site Plan & Voltage Drop
